FTVOGUE Solar Panel Tester, 3.2 Inch LCD Display Digital Multimeter for PV Module Voltage Current Power Measurement up to 2000W for Residential Commercial Solar Systems

Spec: Item Type: Solar Panel Tester Product Material: ABS Solar Voltage Measurement: 3-90.00V, ±1.5%+5 Solar Current Measurement: 0-40.00A, ±1.5%+5 PV Panel Power: 0-2000W, ±1%+5 Sampling Points: 200 Digit Groups Data Record: 30 Sets Interface: DB9 Protective Functions: Over Power, Over Voltage, Reverse Polarity, Over Current, Over Temperature Guard Illumination Function: Support Battery: 1 x 1250mAh Rechargeable Li Battery (Built in) Low Battery Detection Function: Support Auto Power Off: Support Power Supply: Requires 5V/2A/10W or Higher Power Supply (Charger Not Included) Package List: 1 x Solar Panel Tester 1 x Storage Bag 1 x Testing Cable 1 x USB Cable 1 x User Manual How To Use: Take out the product, install and use.

• [High Solar Testing] This advanced solar panel tester delivers accurate measurements with ±1.5%+5 for voltage (3-90v) and current (0-40a). capable of testing up to 2000w solar modules, it helps identify shading issues and panel degradation through sophisticated mppt tracking technology. perfect for maximizing energy harvest in both residential and commercial solar installations.
• [Clear Lcd Display & Data Logging] Featuring a large 3.2 inch backlit lcd screen, this tester makes data interpretation effortless even in dark environments like rooftops. it stores 30 sets of measurement data and offers convenient data hold function. the included storage bag ensures easy transport for on-site troubleshooting and analysis.

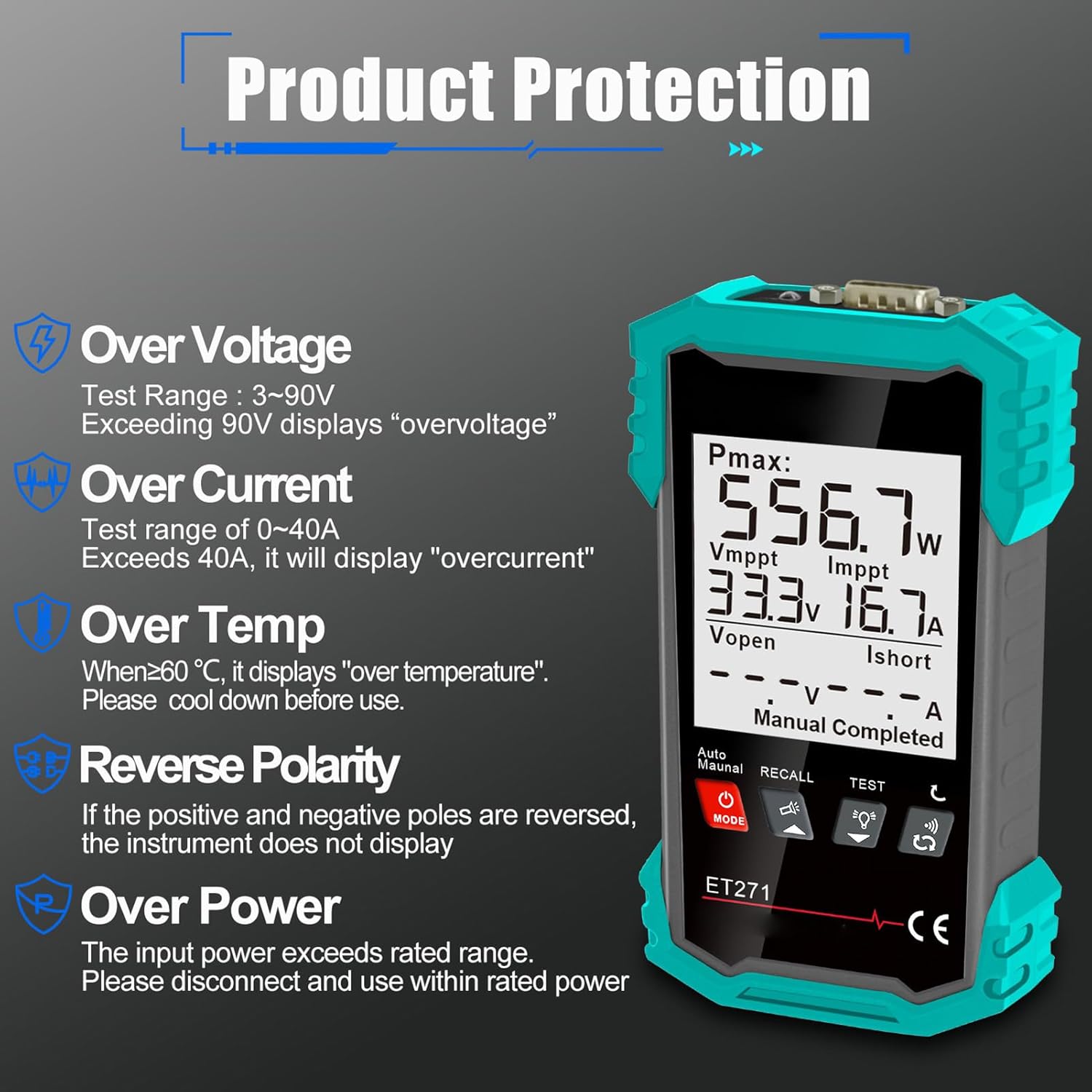

• [Advanced Safety Protection] Built with comprehensive protection against over power, over voltage, reverse polarity, over current, and over temperature. the integrated 1250mah li battery provides extended operation time while the low battery detection and auto power-off features enhance safety and energy efficiency during field testing.
• [Portable & User-friendly Design] This lightweight abs-built tester comes with illumination for night work and a durable storage bag. the db9 interface and 200 sampling points ensure thorough testing. requires just a 5v/2a power supply (not included) for charging, making it perfect for professional installers and solar maintenance teams.
• [Efficient Fault Diagnosis] The auto-ranging function simplifies operation for technicians while the precise mppt tracking quickly evaluates solar module performance. ideal for production quality control, system acceptance testing, and maintenance checks to rapidly identify faults in photovoltaic systems.
